GTB1200 1200 W Grid-Tie Microinverter.

A four-panel unit with four MC4 pairs for four 300 W modules, 1200 W AC output on a 120 V or 230 V grid, 95% peak efficiency and WiFi cloud monitoring.

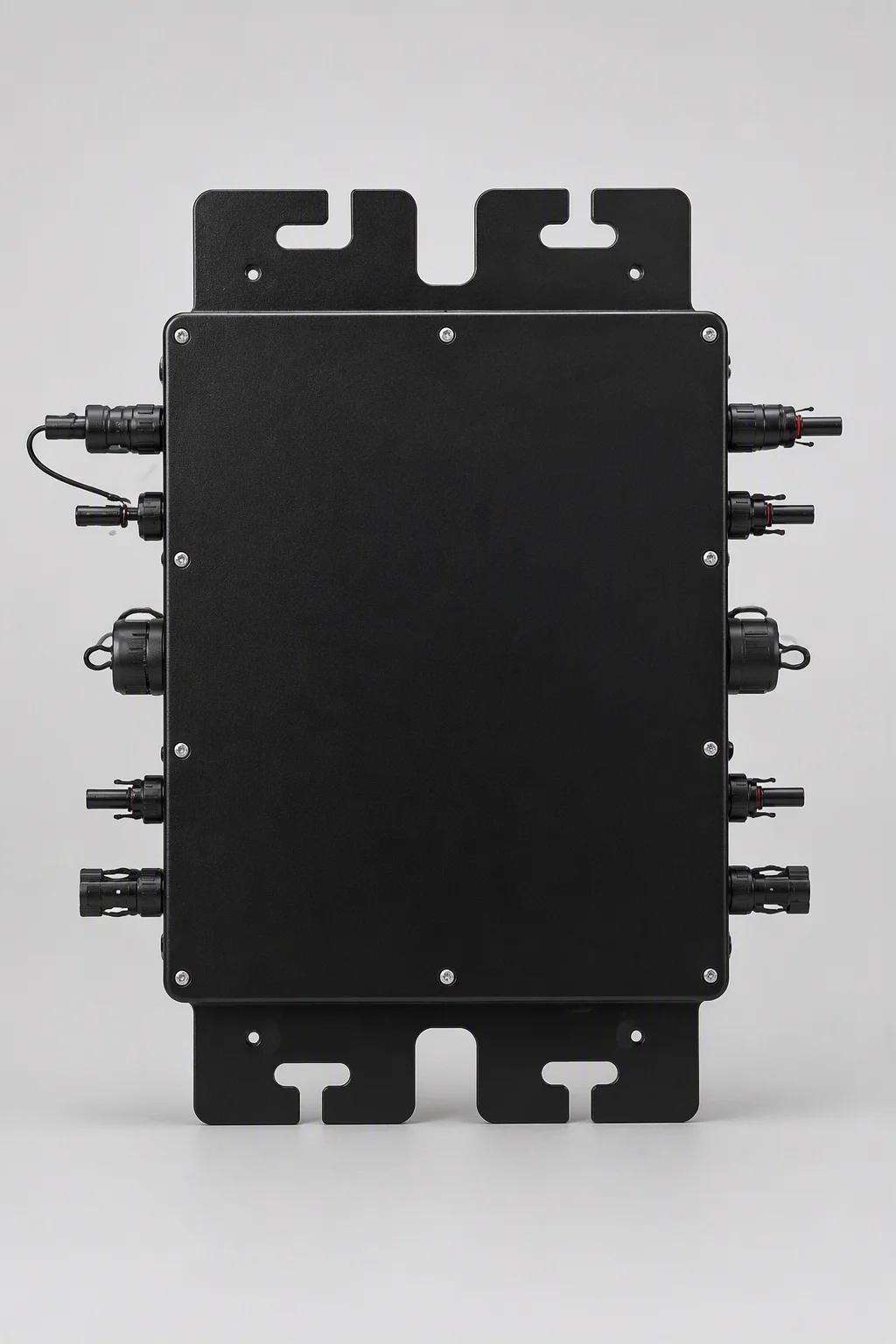

GTB 1200W grid-tie microinverter product view with MC4 connectors
GTB1200 · 1200 W

Four panels, one inverter.

The GTB1200 serves four 300 W modules through four MC4 pairs with a 15 A×2 maximum input current. It shares the 365×230×40 mm chassis and 3.5 kg weight with the GTB1400 and GTB1600.

  • 4 MC4 pairs · 15 A×2 maximum input current
  • 95% peak efficiency · 99.5% MPPT efficiency
  • 4 units per 230 V branch · 2 per 120 V branch
  • IP65 · natural convection, no fans
Rated power1200 W
MC44 sets
Panels4 × 300 W
Weight3.5 kg
Dimensions365×230×40 mm
Per branch (230 V)4 units
Full Datasheet

Every figure from the user manual.

Transcribed from the GTB1200 user manual, parameter page. Warranty term is not stated in the manual, so we do not quote one.

Number of Input MC4 Connector4 sets
MPPT Voltage Range22V–48V
Operation Voltage Range20V–50V
Maximum Input Voltage52V
Startup Voltage22V
Maximum Input Power1200W
Maximum Input Current15A×2
Panel configuration4×300W (max DC input 1200W)
Single-Phase Grid Type120V & 230V
Rated Output Power1200W
Maximum Output Power1200W
Nominal Output Current@120VAC: 5A / @230VAC: 2.6A
Nominal Output Voltage120VAC / 230VAC
Default Output Voltage Range@120VAC: 90V–160V / @230VAC: 190V–270V
Nominal Output Frequency50Hz / 60Hz
Default Output Frequency Range@50Hz: 48Hz–51Hz / @60Hz: 58Hz–61Hz
Power Factor>0.99
Total Harmonic Distortion<5%
Maximum Units per Branch@120VAC: 2 / @230VAC: 4
Peak Efficiency95%
Nominal MPPT Efficiency99.5%
Night Power Consumption<1W
Operating Ambient Temperature-40 ℃ ~ +65 ℃
Storage Temperature-40 ℃ ~ +85 ℃
Dimensions (W×H×D)365mm × 230mm × 40mm
Weight3.5 kg
Max Current of AC Bus Cable20A
Waterproof GradeIP65
Cooling ModeNatural Convection – No Fans
CommunicationWIFI (cloud monitoring)
Transformer DesignHigh Frequency Transformers, galvanically isolated
Protection FunctionsIsland / Voltage / Frequency / Temperature / Current
Design ComplianceEN IEC61000-3-2:2019+A1:2021 · EN 61000-3-3 · EN IEC55014-2:2021
CertificationsCE · ISO9001 · ISO14001 · LVD · RoHS · IEC
Wiring

PV array to hybrid inverter.

System wiring diagram showing PV array, PV switch, hybrid inverter and grid connection
System wiring — PV array, switch, hybrid inverter
Installation Notes

Three rules before you mount.

01

Check panel voltage

Keep each panel's Voc at or below 52 V and total input at or below 1200 W — the unit's maximum input voltage and power.

02

Mount out of direct weather

The housing is IP65, but the manual directs installers to avoid direct sunlight and rain and never cover the unit.

03

Seal unused ports

Close any unused connectors, and only qualified personnel may open the cover for service.

Buyer Questions

GTB1200, answered.

Four 300 W panels per unit, one on each of the four MC4 pairs. Keep each panel's open-circuit voltage at or below 52 V and total input at or below 1200 W.

Up to 4 units per branch on a 230 V grid, or 2 per branch on a 120 V grid, per the datasheet table — consistent with the wiring guide. The AC bus cable is rated 20 A.

Grid-tie only. The unit produces when 20–50 V DC and AC grid are both present; with PV alone the status light is red and the unit does not operate. Monitoring is via the Smart Life app over WiFi.

Quote a GTB1200 run.

Send your panel wattage, quantity and grid voltage — we return a per-branch layout within one working day.
