Rack-cabinet energy storage, 24–51.2 V.
Purpose-built LiFePO4 batteries for telecom, UPS, solar and central-office racks, supplied through our dedicated battery-pack manufacturing partner Three voltage classes — 24 V, 48 V and 51.2 V — with 2000+ cycles at 100% DOD and a 10-year design life. Packs parallel up to 16 units, self-discharge is below 3% per month, and the cells tolerate ambient heat up to +60 °C. The lightweight LiFePO4 chemistry cuts weight to about one third of an equivalent sealed lead-acid bank.
Pick the bus voltage your rack already runs.
Each unit ships as a self-contained pack with built-in BMS and CAN/RS485 communication, ready to parallel into larger banks. The LiFePO4 cells deliver 2000+ cycles at 100% DOD, cutting replacement frequency against lead-acid.

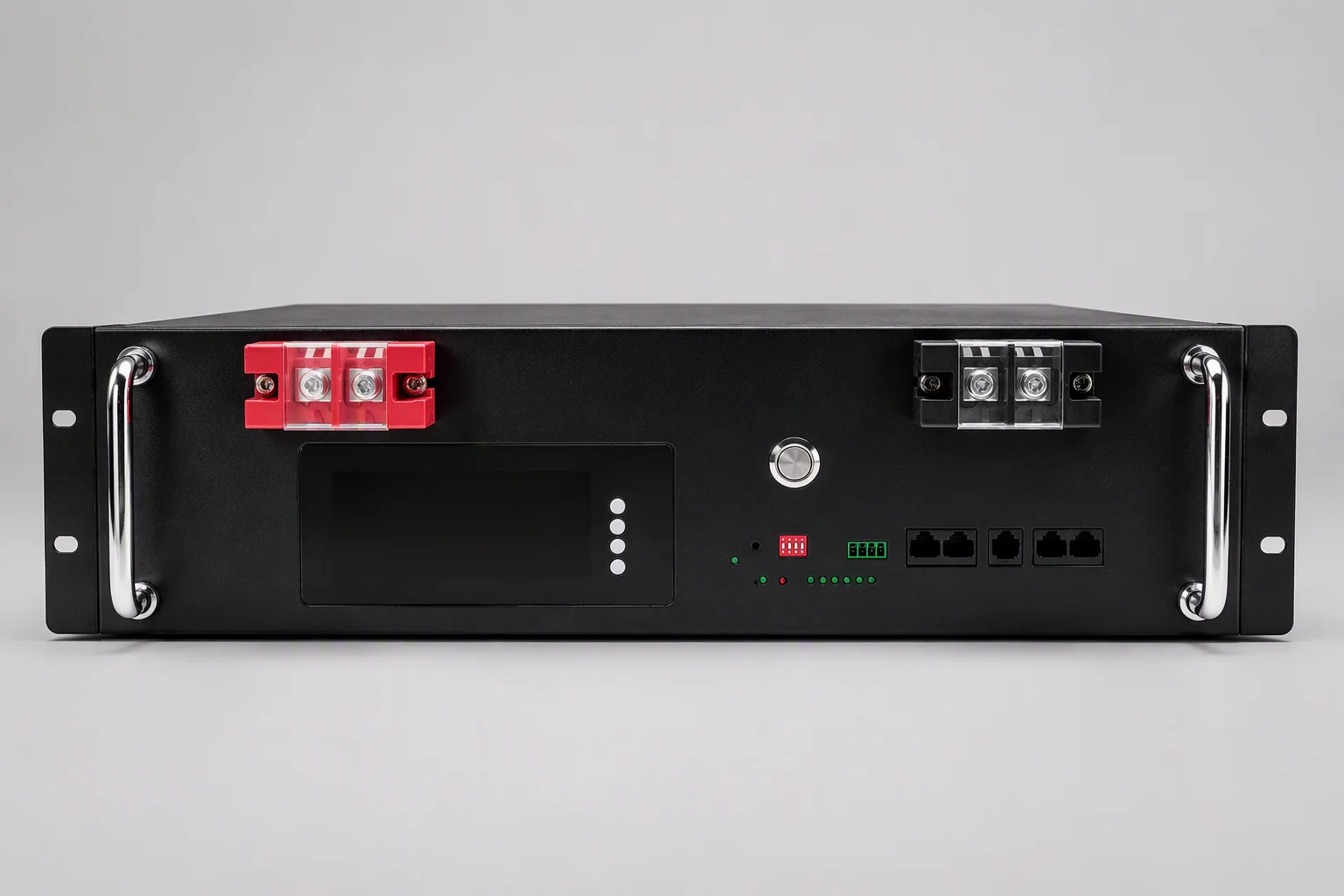

24 V 100 Ah
2.56 kWh for 24 V DC systems and solar street-light banks. Rack-mount footprint with front terminals.
View 24 V datasheet
48 V 50 Ah
2400 Wh with 50 A continuous discharge for 48 V telecom and UPS racks. Also offered as 48 V 100 Ah (4800 Wh).
View 48 V datasheet
51.2 V 100 Ah
5120 Wh at 51.2 V — the 16-cell LiFePO4 standard for modern solar storage and HomeESS stacks.
View 51.2 V datasheetOne chemistry, three bus voltages.
All figures below come from the partner catalog (Residential Energy Storage Battery Product Catalog). Where a specific unit is not listed in the catalog, we say contact sales rather than estimate — this keeps the table honest for buyers quoting against a formal tender.
| Nominal voltages | 24 V · 48 V · 51.2 V |
|---|---|
| Capacities | 24 V 100 Ah · 48 V 50/100 Ah · 51.2 V 100 Ah |
| Energy by configuration | 2.56 kWh (24 V 100 Ah) · 2.4/4.8 kWh (48 V 50/100 Ah) · 5.12 kWh (51.2 V 100 Ah) |
| Chemistry | LiFePO4 (LFP) |
| Max continuous discharge | 50 A (48 V 50 Ah) · contact sales for other units |
| Cycle life | 2000+ cycles @ 1C, 100% DOD |
| Self-discharge | <3% per month |
| Design lifespan | 10 years |
| BMS | Built-in — overcharge / over-discharge / overcurrent / short-circuit |
| Communication | CAN / RS485 |
| Enclosure | IP54 / IP65 |
| Certifications | CE (battery) · UN38.3 (battery) · MSDS |
| Parallel | Up to 16 packs |
| Factory quality system | ISO9001 · EMS-ESS battery-partner factory |
Our battery-pack manufacturing partner is ISO9001-certified and invests 10% of annual profit in R&D. The Dongguan factory runs four standardized lines at 30,000 cells and 2,000 packs per day — average monthly output of 12,000 packs, peaking at 52,000 — and every main model ships with CE, UN38.3 and MSDS documents.
How our battery pack partner ships.
Our battery-pack manufacturing partner runs four standardized lines at 30,000 cells and 2,000 packs per day, with ISO9001 quality control and a US$2 million product liability policy from Ping An insurance.
Standard sample
Off-the-shelf packs are sampled in 3 days, so you can validate voltage, capacity, self-discharge and BMS behavior before committing to a full bank.
Custom sample
Modified enclosures, connectors or labeling are sampled in 15 days before tooling is committed.
Mass production
Approved designs enter mass production with a 20-day lead time across four lines at 2,000 packs per day, backed by CE, UN38.3 and MSDS documents.
Quote a rack-cabinet bank.
Send your bus voltage, capacity and parallel count — we quote the pack and the certification pack within one working day.
