Wall-mounted ESS, 3–12 kW.
A hybrid inverter and LiFePO4 battery in one wall-hung unit, sized from 3 kW to 12 kW across single and three-phase. The system mounts in about five minutes, switches to battery in 10 milliseconds, and scales from 5.12 to 46.08 kWh as your customer's load grows.
Backup power without the battery room.
The whole system hangs on a wall like a flat-screen TV. Three color-coded cables plug into foolproof sockets, the ports are insulated to IP67, and the positive and negative terminals sit at 0 V until assembly — so installers and shippers stay safe.
- 10 ms switchover (UPS, VDE) — lights stay on, computers keep working
- 90–280 V wide input with constant-voltage output on unstable grids
- IP67-insulated ports and foolproof sockets prevent reverse polarity
- SOC breathing light: blue, green, yellow — red signals a fault
- BMS monitors all 16 cells with 6 temperature probes
- Universal wheels rated 150 kg for easy repositioning
| Power range | 3–12 kW |
| Capacity | 5.12–46.08 kWh |
| Switchover | 10 ms (UPS/VDE) |
| Efficiency | 93% / 98.2% |
| Warranty | 5 + 10 years |
| Certifications | CE/TUV |
Two white models, ready to quote.
Both share the same 5.12 kWh battery module and the same 600 × 420 mm footprint. The 5 kW fits single-phase homes; the 10 kW carries heavier PV arrays and larger evening loads.

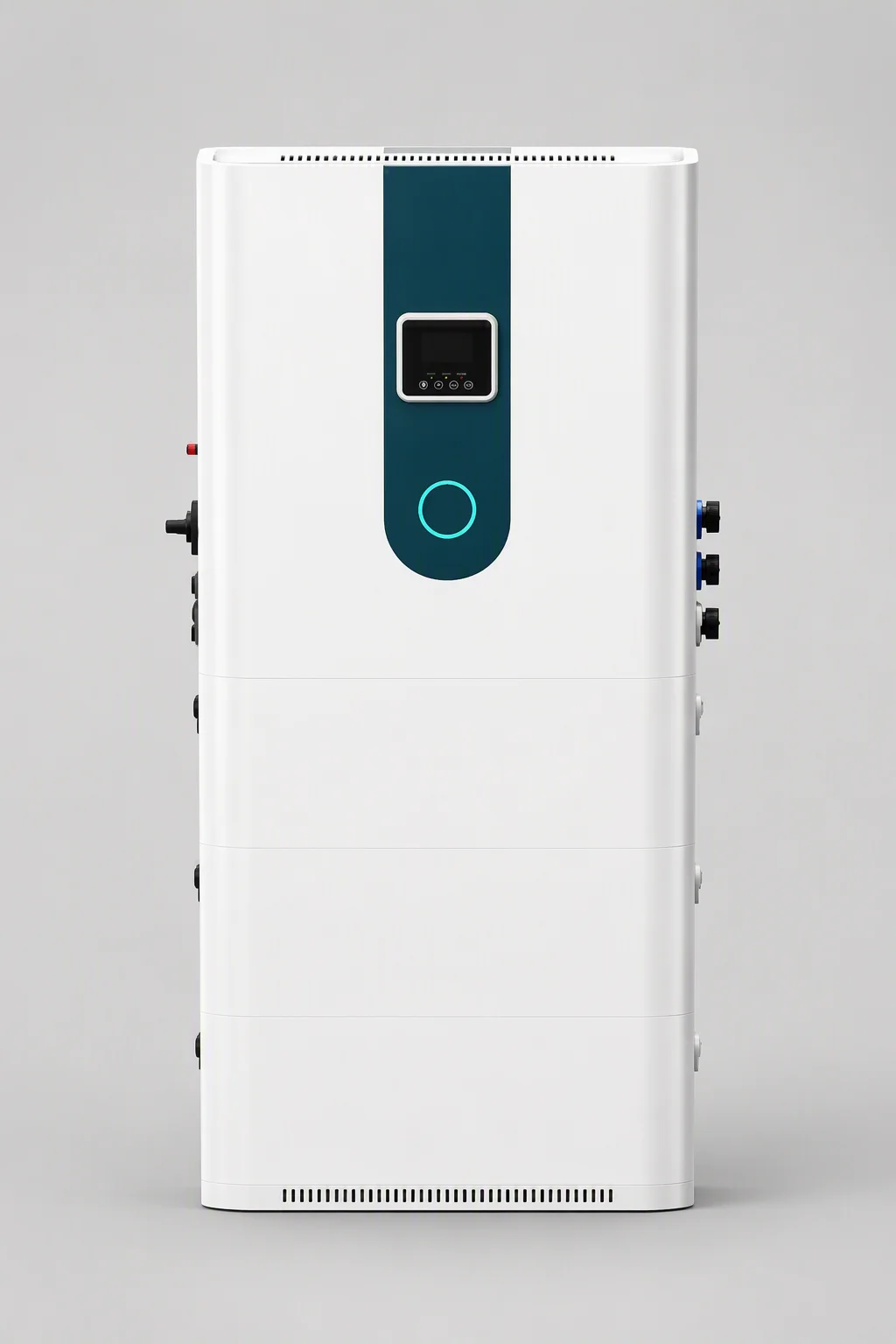

5 kW Wall-Mounted ESS
Single-phase hybrid for homes. 5000 W output, 21.7 A rated current and 93% charge/discharge efficiency.
View 5 kW datasheet
10 kW Wall-Mounted ESS
Single-phase high-power hybrid. 10,000 VA output, 43.5 A rated current and 98.2% efficiency with MPPT 125–500 V.
View 10 kW datasheetNine models, three hardware families.
From the 3 kW entry unit to the 12 kW three-phase model, every system shares the 5.12 kWh battery module, TN grounding, 10-year design life and 5 + 10 year warranty.
| ESS 3k · Single | 3000 W · 1-phase · current — · PV 4000 W · MPPT 64–130 V · 93% · 5.12–40.96 kWh (1–8) · 600/420/600 mm, 31.9 kg |
|---|---|
| ESS 4k · Single | 4000 W · 1-phase · 17.4 A · PV 4000 W · MPPT 64–130 V · 93% · 5.12–40.96 kWh (1–8) · 600/420/600 mm, 38.5 kg |
| ESS 5k · Single | 5000 W · 1-phase · 21.7 A · PV 4000 W · MPPT 64–130 V · 93% · 5.12–40.96 kWh (1–8) · 600/420/600 mm, 38.5 kg |
| ESS 8k · Three | 8000 W · 3-phase · 12.7 A · PV 12000 W · MPPT 180–850 V · 98.2% · 15.36–46.08 kWh (3–9) · 600/420/820 mm, 65.5 kg |
| ESS 9k · Single | 9000 VA · 1-phase · 39.2 A · PV 11700 W · MPPT 125–500 V · 98.2% · 15.36–35.84 kWh (3–7) · 600/420/820 mm, 65.5 kg |
| ESS 10kS · Single | 10000 VA · 1-phase · 43.5 A · PV 13000 W · MPPT 125–500 V · 98.2% · 15.36–35.84 kWh (3–7) · 600/420/820 mm, 65.5 kg |
| ESS 10kT · Three | 10000 W · 3-phase · 15.9 A · PV 15000 W · MPPT 180–850 V · 98.2% · 20.48–46.08 kWh (4–9) · 600/420/820 mm, 65.5 kg |
| ESS 11k · Single | 11400 VA · 1-phase · 49.5 A · PV 14820 W · MPPT 125–500 V · 98.2% · 15.36–35.84 kWh (3–7) · 600/420/820 mm, 65.5 kg |
| ESS 12k · Three | 12000 W · 3-phase · 19.1 A · PV 18000 W · MPPT 180–850 V · 98.2% · 25.6–46.08 kWh (5–9) · 600/420/820 mm, 65.5 kg |
| Battery module (all) | 5.12 kWh · LiFePO4 · 600/420/200 mm · 54 kg |
| Base (all) | 600/420/130 mm · 17.5 kg |
| Warranty (all) | 5 years product + 10 years performance |
| Certifications (all) | CE/TUV · IEC 62109-1&-2 · IEC 62477 · UN38.3 |
| Environment (all) | -15–55 °C · 2000 m altitude · IP20 · 5–95% RH |

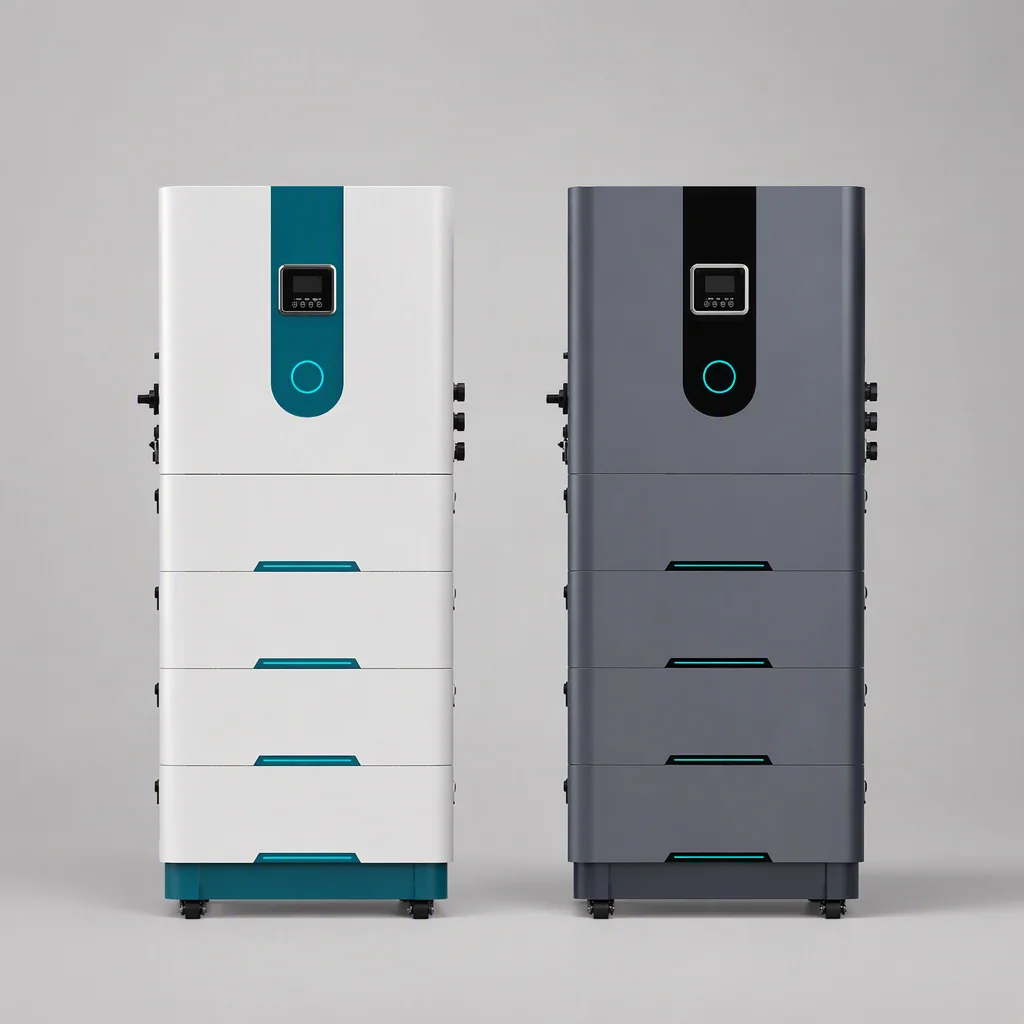

White or gray, then make it yours.
Factory colors are pure white and gray, and both carry identical specifications. For distributors, OEM color matching, logo printing and private-label packaging are supported — the platform, certifications and APP monitoring stay unchanged.
Wall-mounted, answered.
Pick by peak load and PV size. The 5 kW takes up to 4000 W of PV with MPPT 64–130 V and suits most single-phase homes. The 10 kW accepts 13,000 W of PV with MPPT 125–500 V, outputs 10,000 VA at 43.5 A and runs at 98.2% efficiency — the better match for larger arrays and heavy evening loads.
Yes. Each 5.12 kWh battery module stacks under the inverter. The entry series (3/4/5 kW) takes 1–8 modules for 5.12–40.96 kWh; the high-power and three-phase units take 3–9 modules for up to 46.08 kWh depending on model.
Yes. White and gray are finish options only — power, efficiency, switching time, warranty and certifications are identical. Choose the color that matches the installation wall, or specify an OEM color at order stage.
Quote a wall-mounted system.
Send your target power, battery capacity and grid phase — we return a datasheet-backed quotation within one working day.
