24V 100Ah Rack-Cabinet Battery.
A 24 V class LiFePO4 pack, 100 Ah and roughly 2.4 kWh, for 24 V DC systems, solar street lights and telecom banks — a drop-in replacement for legacy lead-acid banks, with built-in BMS and CAN/RS485 monitoring.
Drop-in DC storage for 24 V rails.
The ZBPOWER marking printed on the enclosure identifies our battery pack manufacturing partner and is kept as shipped. Inside, a LiFePO4 chemistry delivers 2000+ cycles at 100% DOD with a 10-year design life and a self-discharge below 3% per month.
Typical deployments are 24 V telecom rectifier plants, solar street-light banks and small DC UPS strings. LiFePO4 keeps the pack roughly one third the weight of an equivalent sealed lead-acid bank while tolerating ambient heat up to +60 °C.
- 25.6 V nominal · 100 Ah · 2.4 kWh
- 2000+ cycles @ 1C, 100% DOD
- Built-in BMS with CAN/RS485 communication
- Parallel up to 16 packs
| Voltage | 25.6 V (24 V class) |
| Capacity | 100 Ah |
| Max discharge | contact sales |
| Cycle life | 2000+ @ 1C 100% DOD |
| Certifications | CE · UN38.3 · MSDS |
What the catalog lists, and what it does not.
Transcribed from the partner's Residential Energy Storage Battery Product Catalog. Items the catalog does not specify for this unit are marked contact sales — we do not estimate. The general LiFePO4 figures below apply across the partner's residential battery line.
| Nominal voltage | 25.6 V (24 V class · 8S LiFePO4) |
|---|---|
| Rated capacity | 100 Ah |
| Rated energy | 2.4 kWh |
| Chemistry | LiFePO4 (LFP) |
| Cycle life | 2000+ cycles @ 1C, 100% DOD |
| Design lifespan | 10 years |
| Max continuous discharge | contact sales |
| Self-discharge | <3% per month |
| BMS | Built-in — overcharge / over-discharge / overcurrent / short-circuit |
| Communication | CAN / RS485 |
| Enclosure rating | IP54 / IP65 |
| Certifications | CE (battery) · UN38.3 (battery) · MSDS |
| Parallel | Up to 16 packs |
| Heat tolerance | Up to +60 °C |
| Dimensions | contact sales |
| Weight | contact sales |
| Manufacturer | Shenzhen Zbpower Technology Co., Ltd. (battery pack manufacturing partner) |
Shenzhen Zbpower Technology Co., Ltd. is ISO9001-certified and runs four standardized lines at 30,000 cells and 2,000 packs per day. Standard samples ship in 3 days, custom samples in 15 days and mass production in 20 days, with CE, UN38.3 and MSDS documents available for every main model.
Front, display and side.

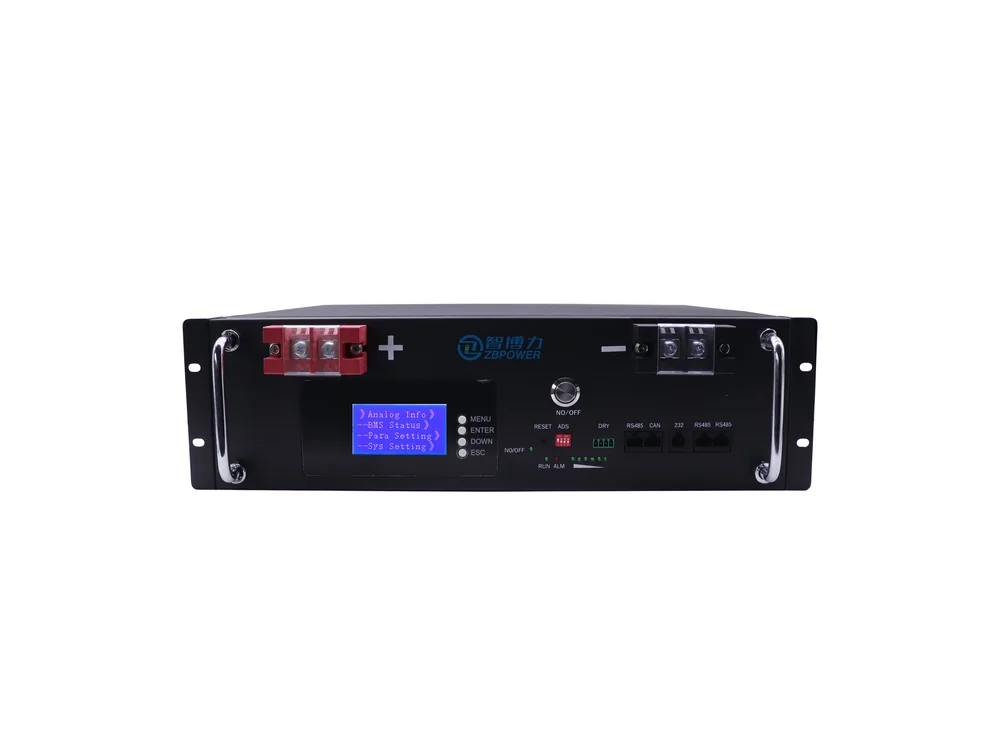

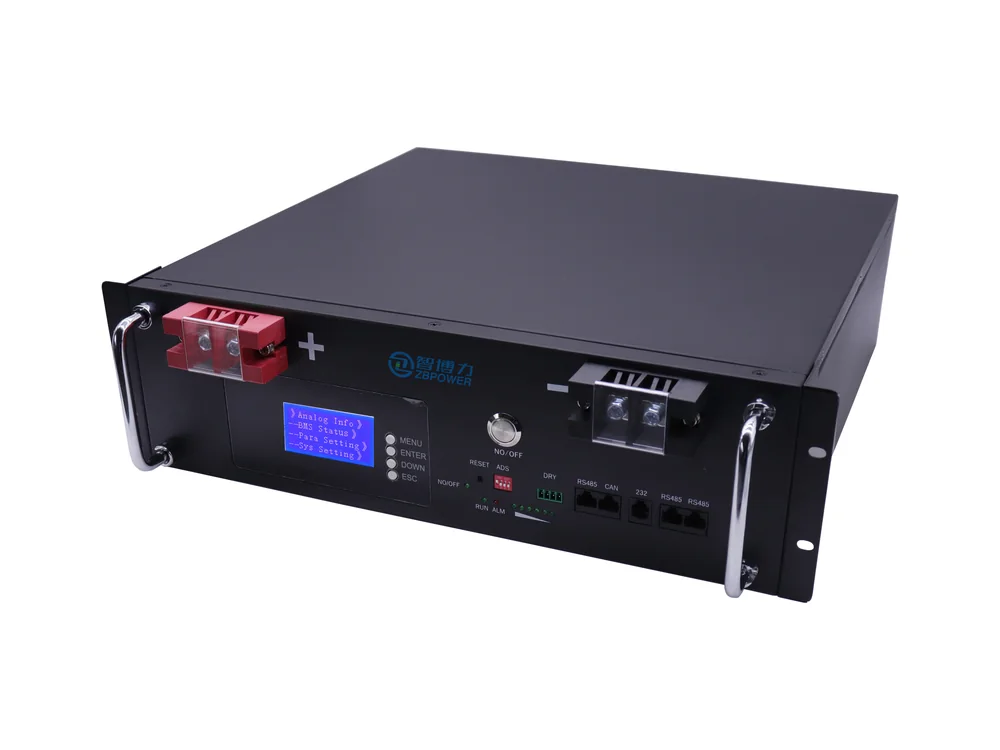

Three shots of the 24 V 100 Ah cabinet showing the front terminals, the display panel and the side profile. The ZBPOWER marking stays as printed on the production line, so the manufacturer of record remains visible on every unit.
24 V pack, answered.
Up to 16 packs can be paralleled into a single bank, per the partner catalog. Confirm your charger or inverter's charge and communication compatibility with CAN/RS485 before finalizing the bank size, and match the pack's internal BMS settings to your charge profile.
No. This is a DC LiFePO4 battery pack for a 24 V bus. It pairs with an external charger, inverter or charge controller. For an integrated AC system, see the wall-mounted or stackable ESS lines.
The catalog specifies a 10-year design life; it does not state a separate warranty term for this unit. Contact sales for the exact warranty and liability terms before ordering. The partner also carries a US$2 million global product liability policy from Ping An insurance.
Quote the 24 V pack.
Send your bus voltage, capacity and parallel count — we return a datasheet-backed quote within one working day.
