EMS-ESS 10 kW Wall-Mounted ESS.
The single-phase high-power hybrid: 10,000 VA of output at 43.5 A, 13,000 W of PV through an MPPT window of 125–500 V, and 98.2% charge/discharge efficiency. Model codes LC-E2-1015S, LC-E2-1020S and LC-E2-1025S.
Heavier loads, higher efficiency.
The 10 kW single-phase unit steps up from the entry series with a larger 600 × 420 × 820 mm inverter enclosure, 98.2% efficiency and a 13,000 W PV ceiling. Three to seven 5.12 kWh modules give 15.36–35.84 kWh of usable capacity for homes running heat pumps, induction cookers and evening EV-adjacent loads.
- 10,000 VA output · 43.5 A rated current
- 98.2% system charge & discharge efficiency
- Battery output 85–400 V · grid 176–270 V · 230 V rated
- 50/60 Hz auto-detect · 20 ms switchover
| Rated output | 10,000 VA |
| Output current | 43.5 A |
| Capacity | 15.36–35.84 kWh |
| Efficiency | 98.2% |
| Warranty | 5 + 10 years |
Every figure from the spec sheet.
Transcribed from the LC-E2-10xxS datasheet. Note this model is single-phase; a three-phase 10 kW version also exists — see the series table for the 10kT.
| Phase | Single Phase |
|---|---|
| Rated Output Power | 10000 VA |
| Rated Output Current | 43.5 A |
| Single Battery Capacity | 5.12 kWh |
| No. of Expandable Batteries | 3~7 |
| Usable Capacity Range | 15.36~35.84 kWh |
| Battery Type | LiFePO4 |
| Battery Output Voltage | 85V~400V |
| Grid Voltage Range | 176V~270V |
| Rated Voltage Range | 230V |
| Rated Grid Frequency | 50Hz/60Hz Auto Detect |
| PV Max Input Power | 13000 W |
| MPPT Voltage Range | 125V~500V |
| System Charge & Discharge Efficiency | 98.2% |
| Grounding Mode | TN |
| Switching Time | 20 ms |
| Designed Lifespan | 10 Years |
| Warranty | 5 years Product / 10 years Performance |
| Certifications | not shown in this datasheet · contact sales |
| Inverter Dimensions/Weight | 600/420/820 mm · 65.5 kg |
| Battery Dimensions/Weight | 600/420/200 mm · 54 kg |
| Base Dimensions/Weight | 600/420/130 mm · 17.5 kg |
| Mounting Options | Stacking |
| Operating Temperature | -15 °C ~ 55 °C |
| Recommend Temperature | 25 °C |
| Altitude | 2000 M |
| Humidity | 5~95% Without Condensation |
| Ingress Rating | IP20 |

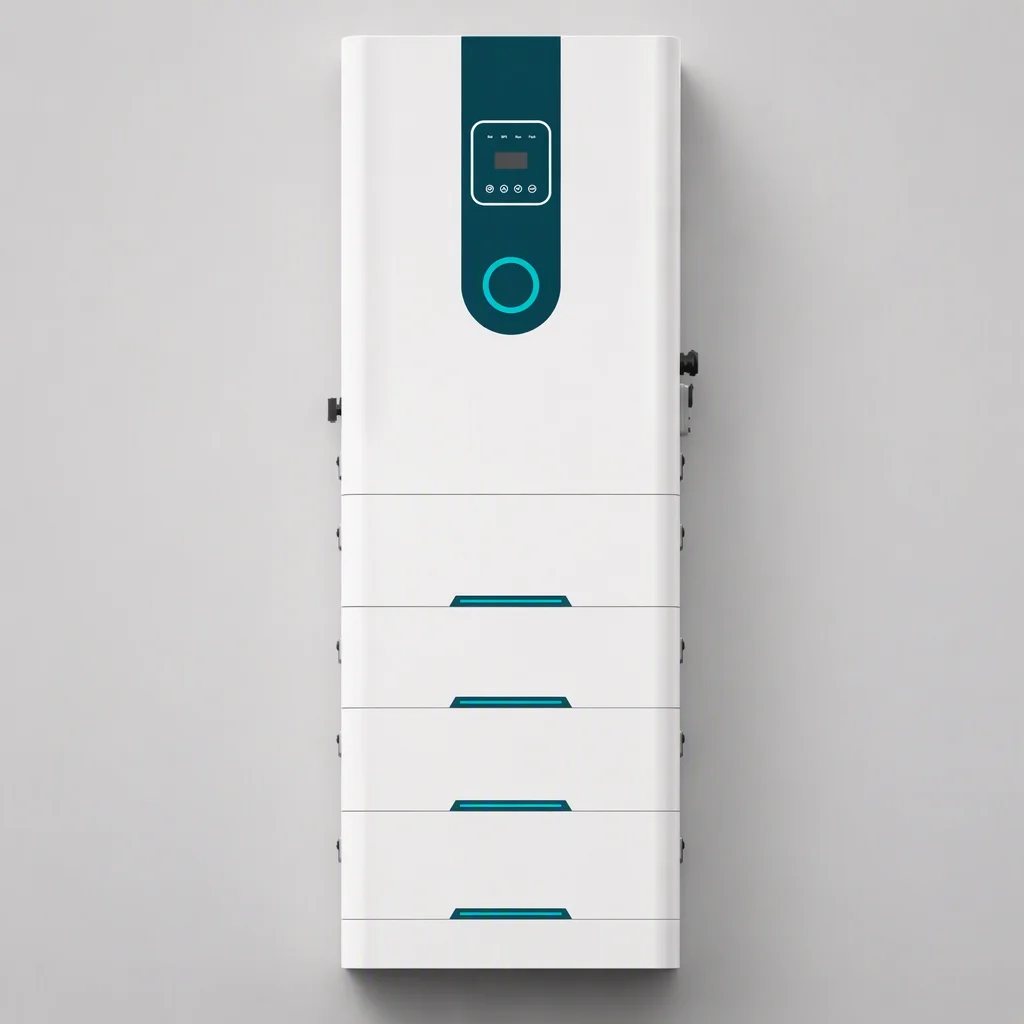

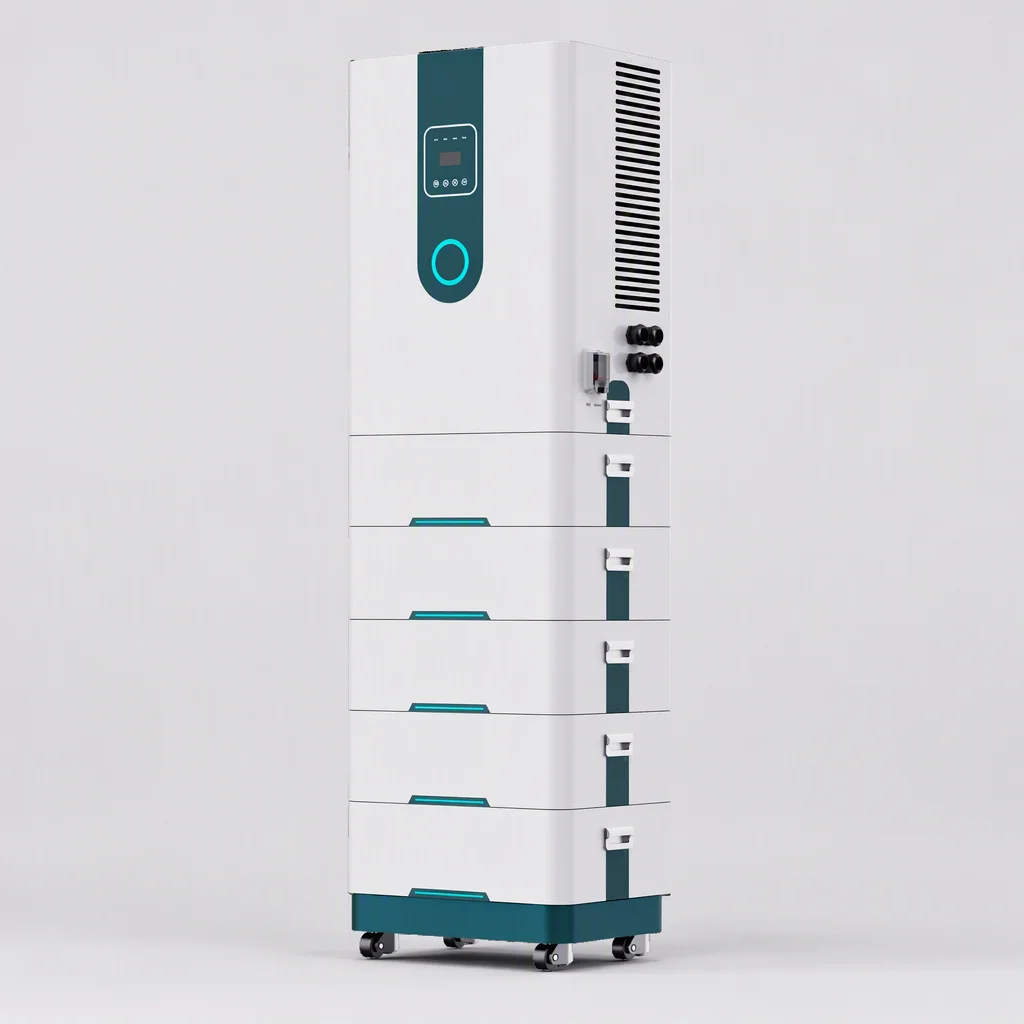

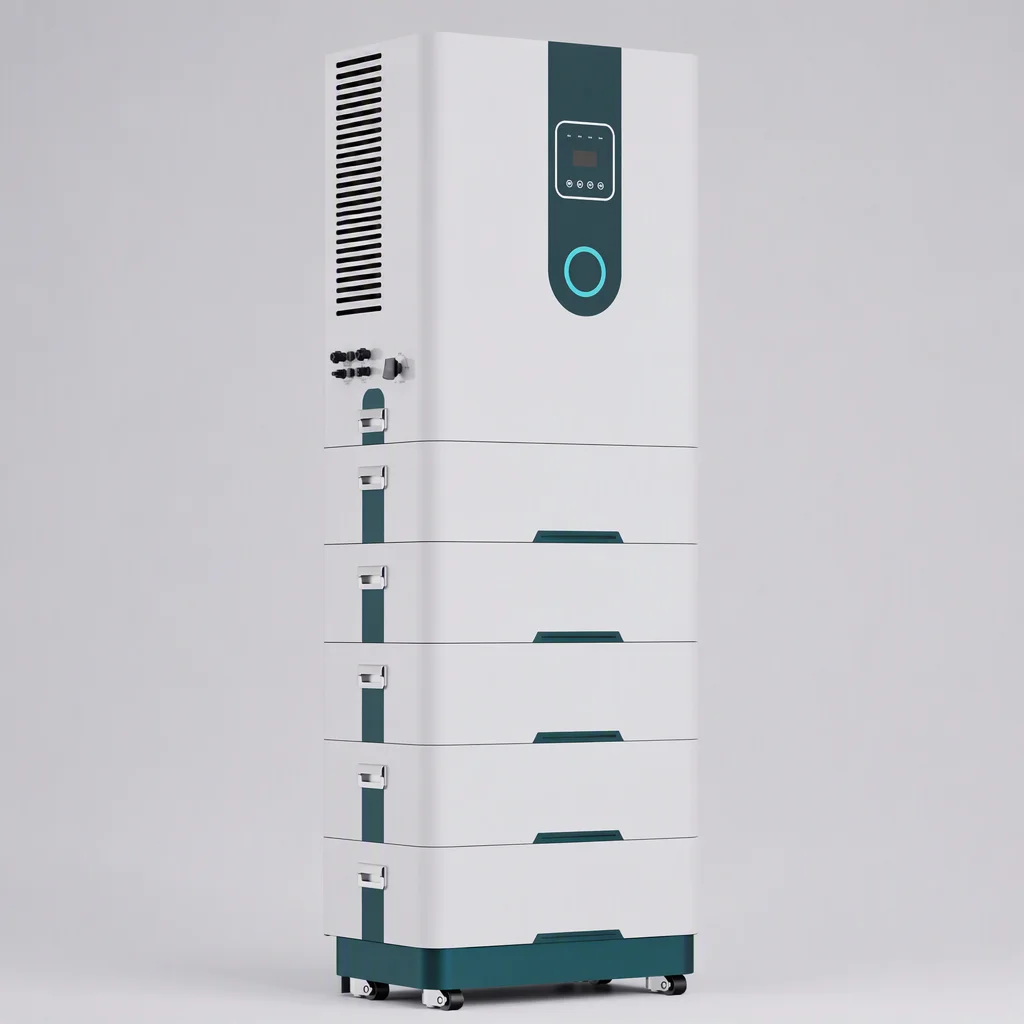

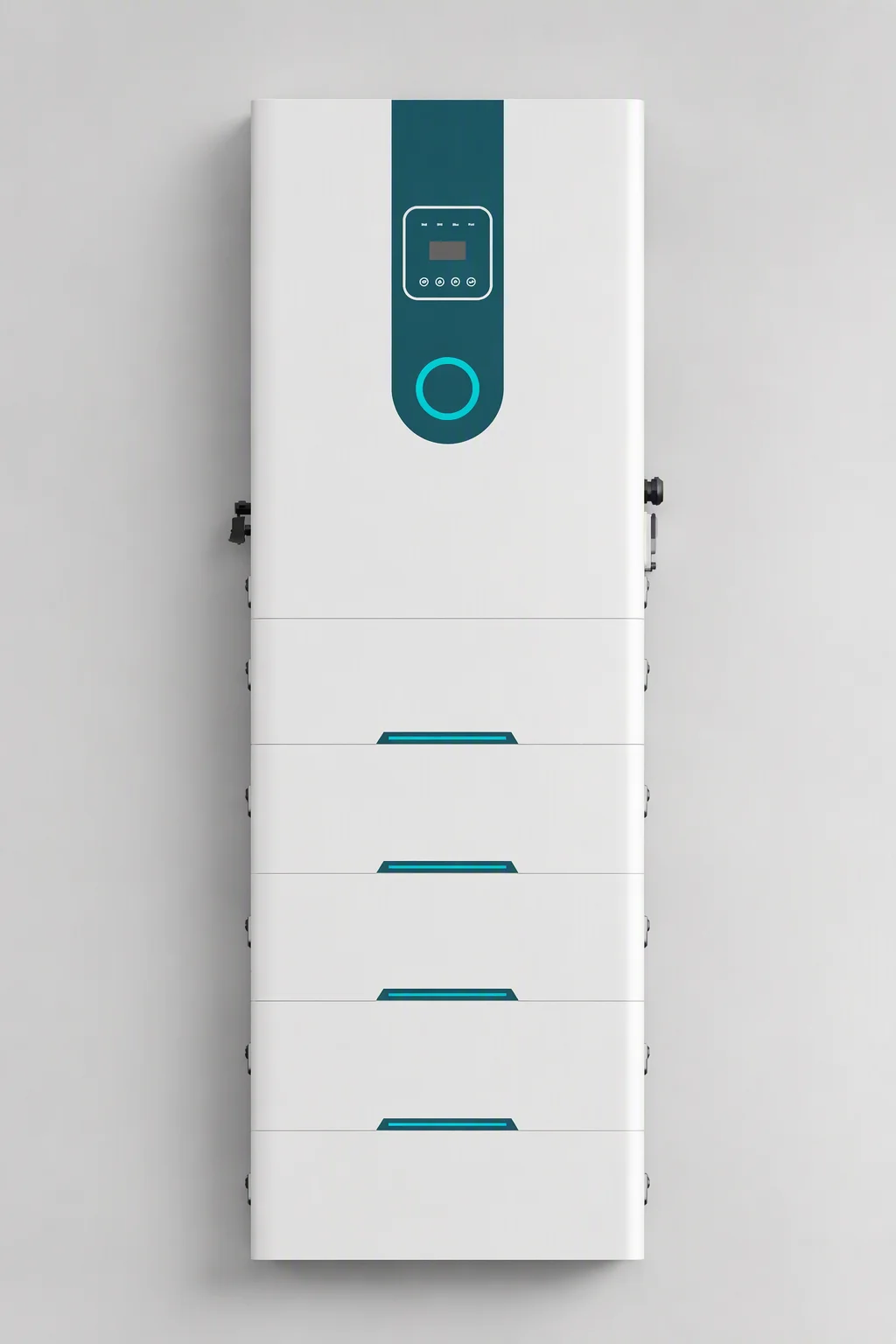

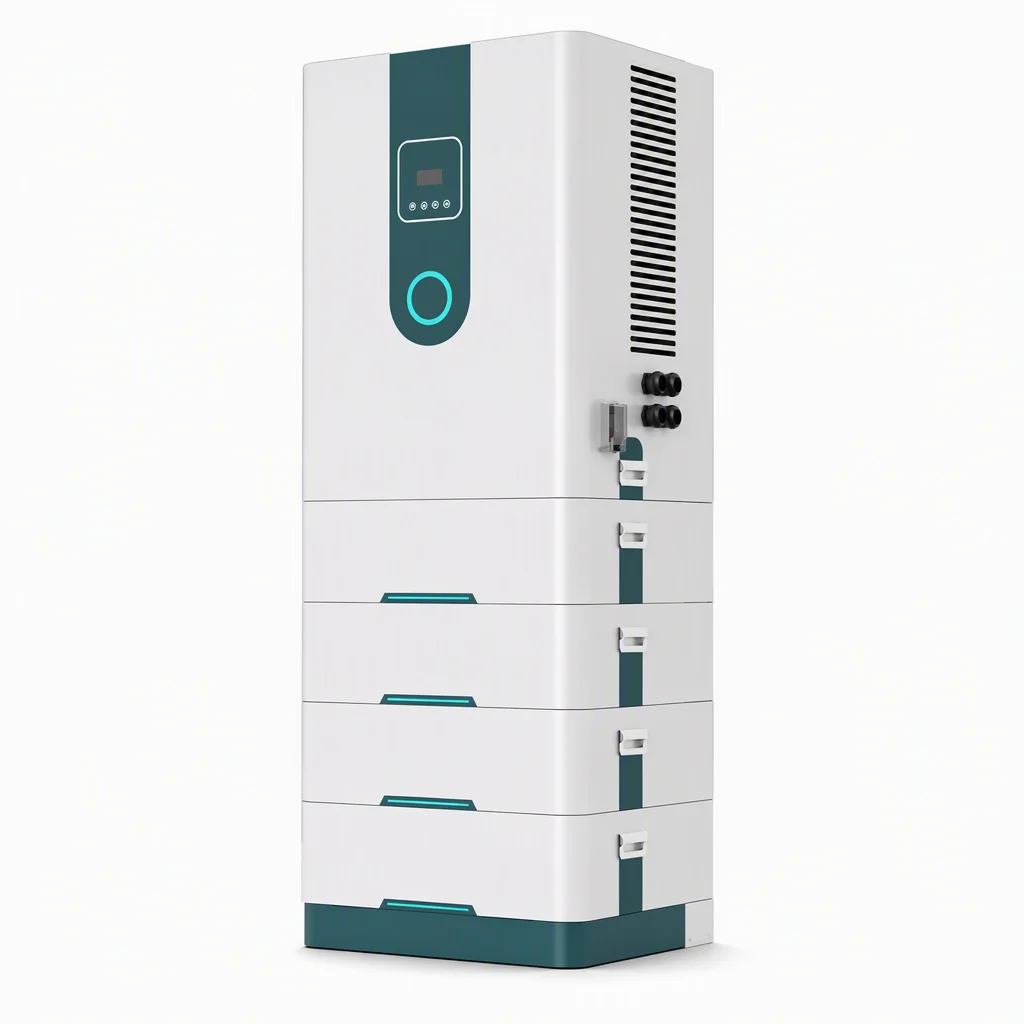

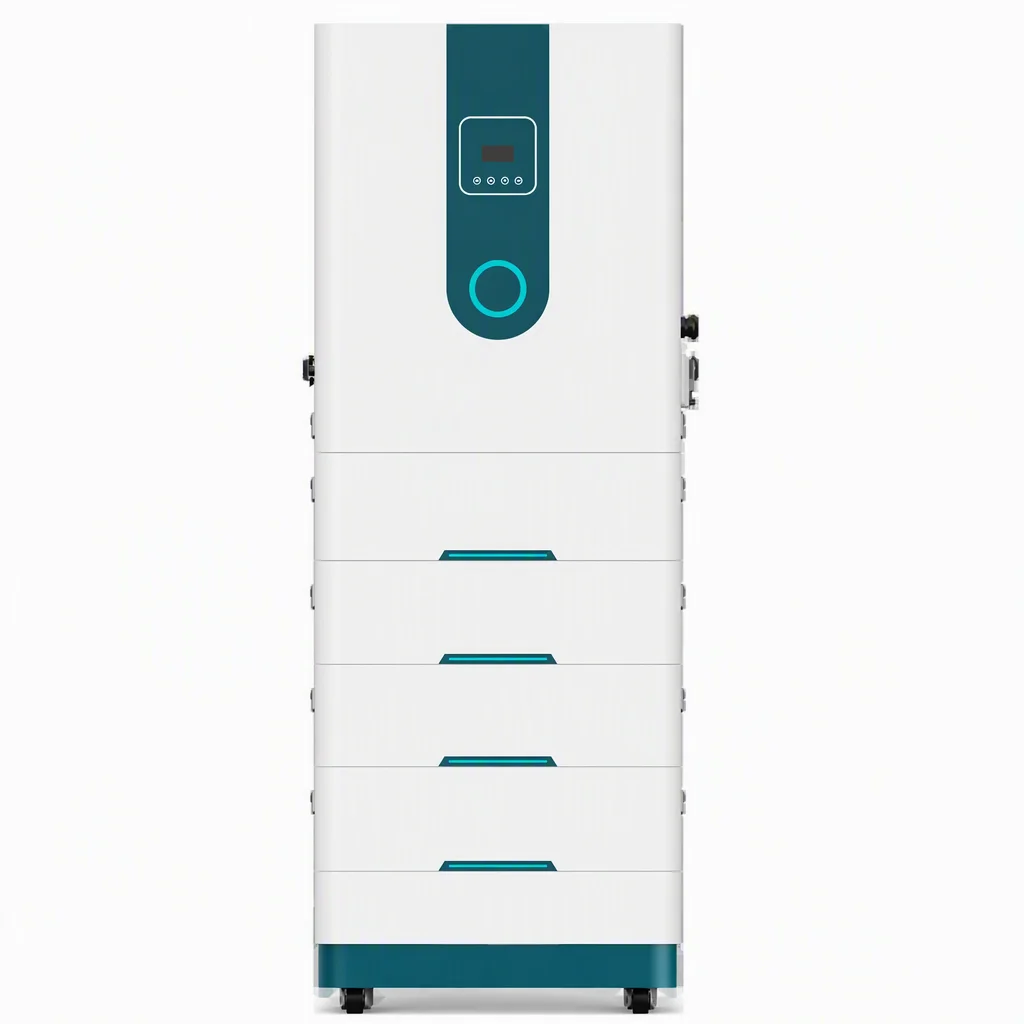

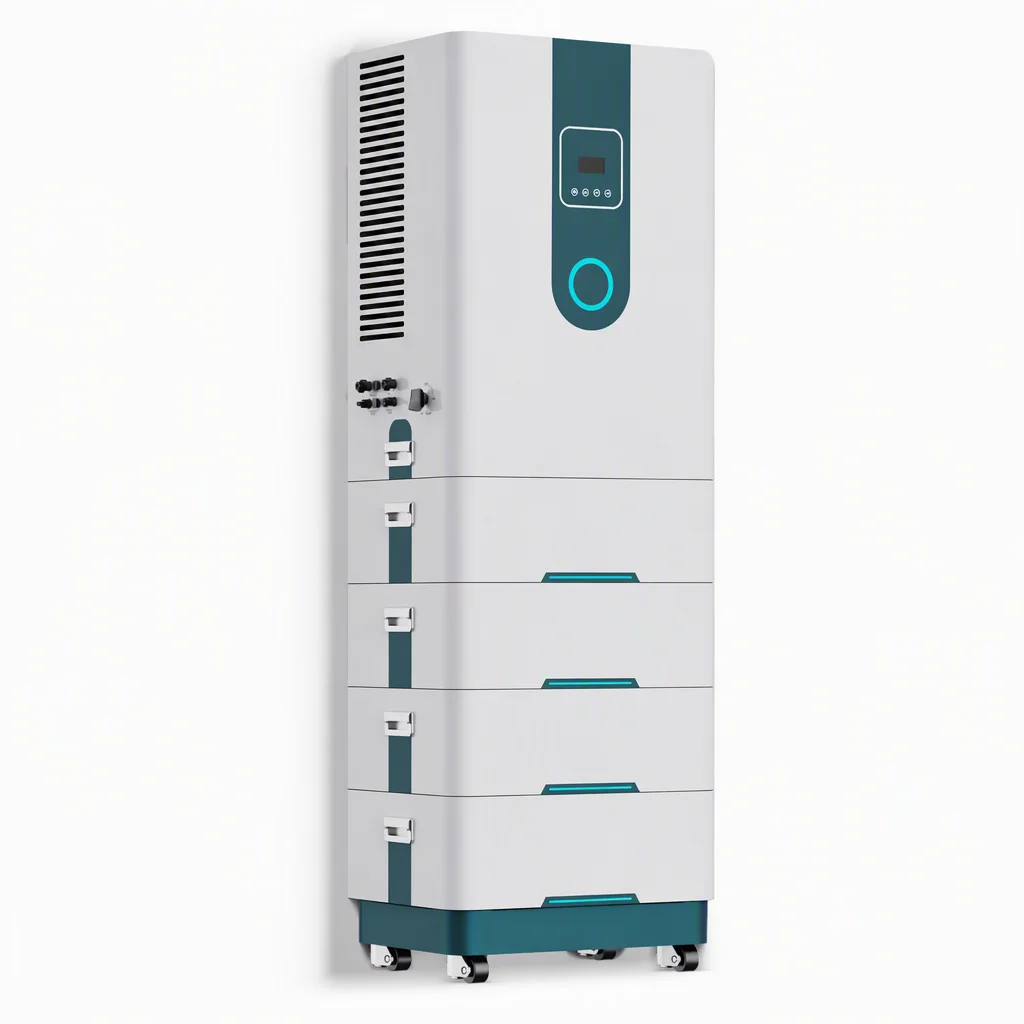

Three angles, one white cabinet.
Studio shots of the 10 kW unit from both sides plus a square front view, showing the port layout and the original panel marking, kept as printed with branding removed from the final online images. The square crops preserve the cabinet's profile for spec-sheet reference.

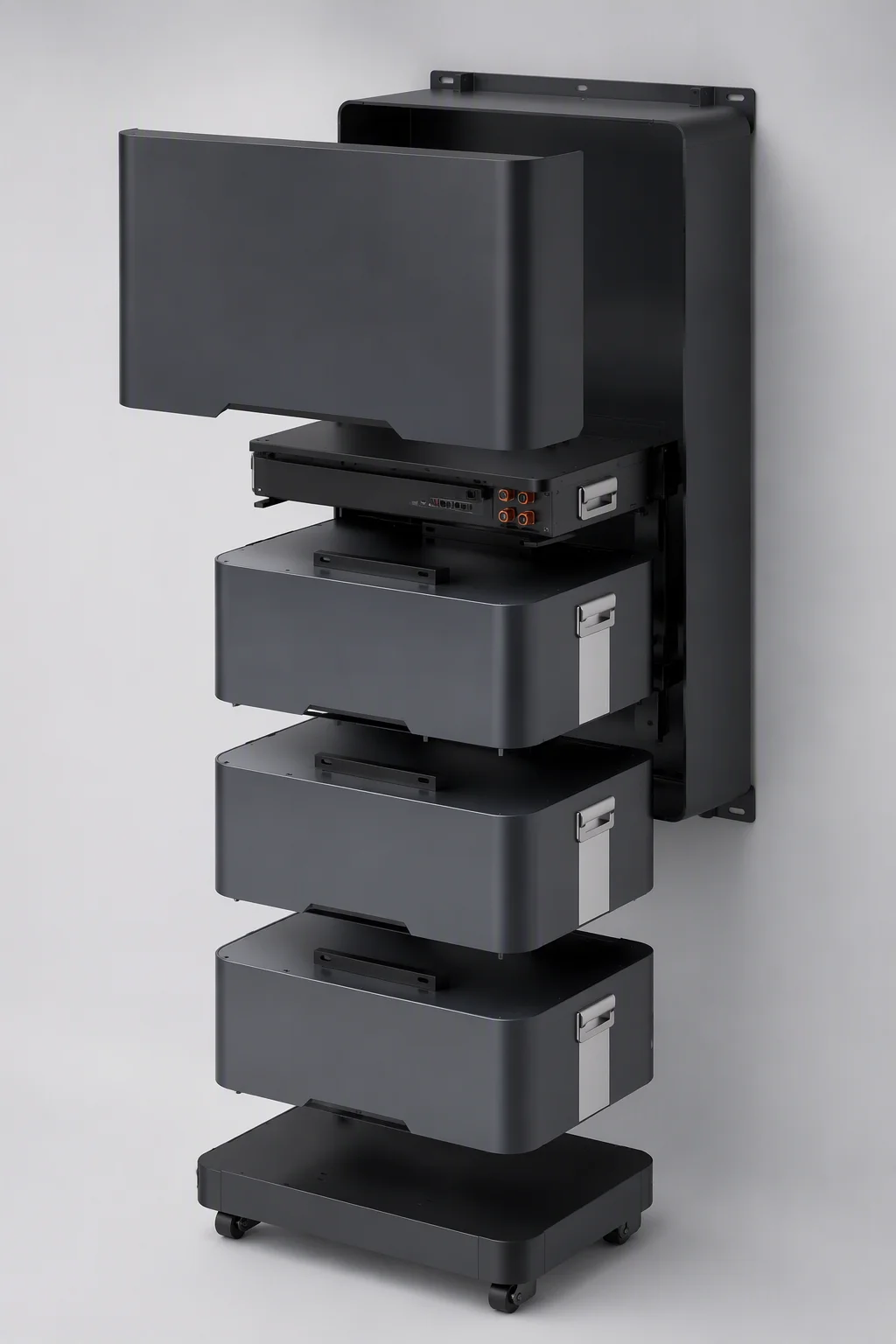

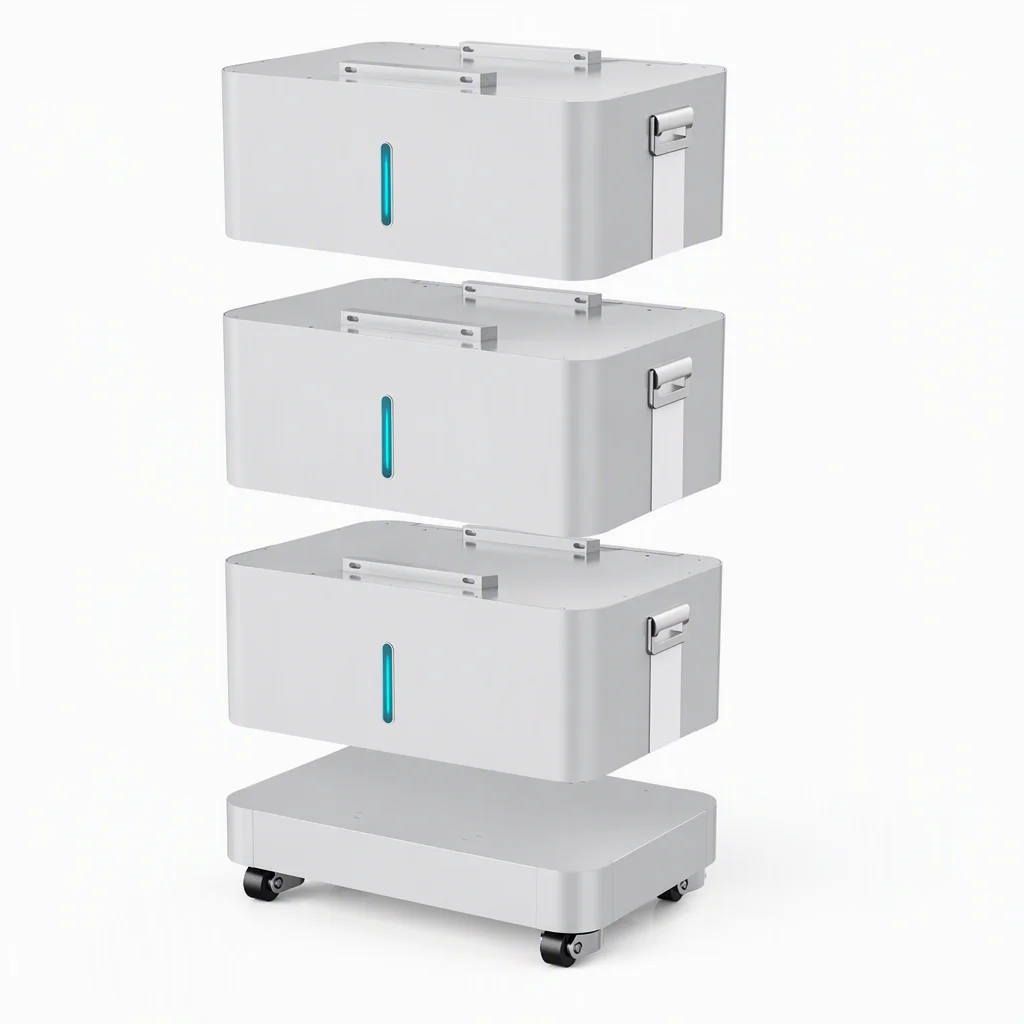

Modular layers, one enclosure.

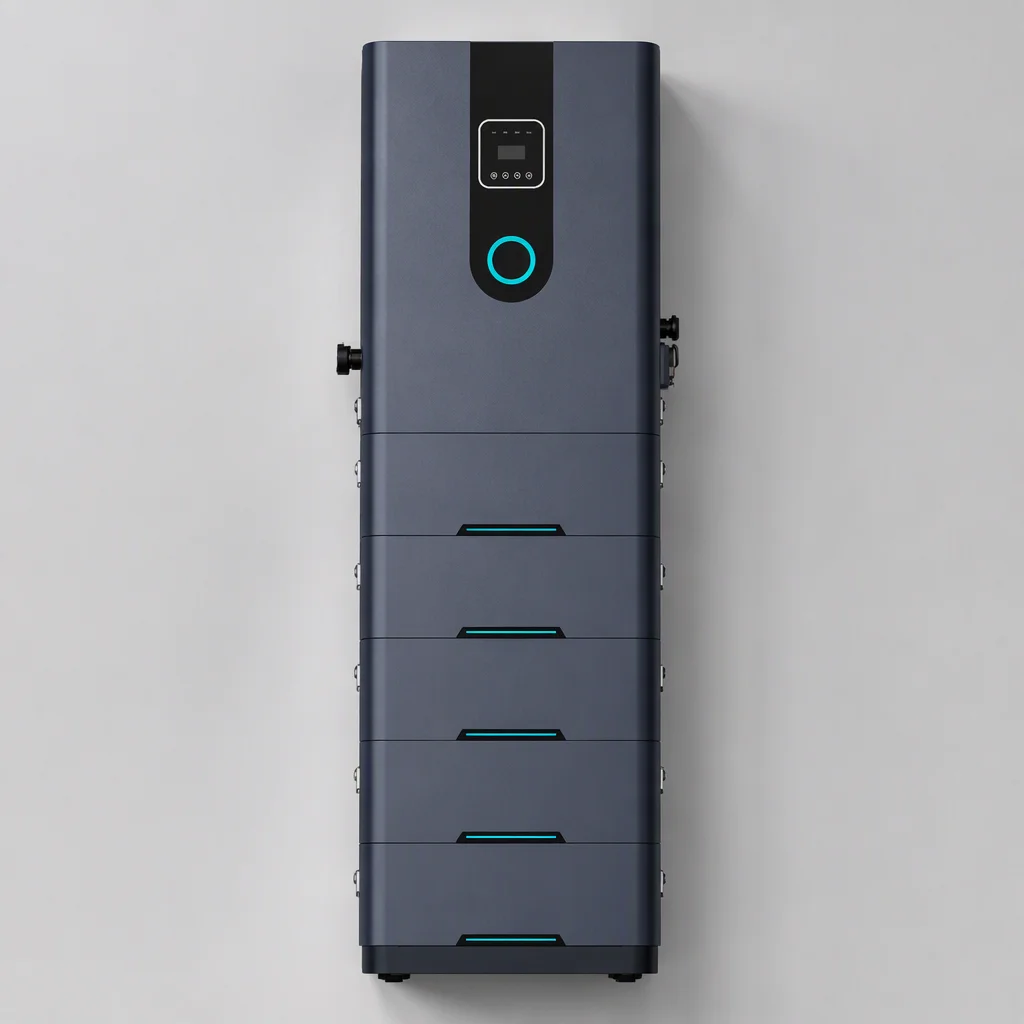

Same 10 kW, in gray.
The gray 10 kW unit carries identical specifications to the white model — 10,000 VA output, 43.5 A, 98.2% efficiency and the same 5 + 10 year warranty. It is a finish option, so distributors can stock both colors without splitting certifications or manuals.
10 kW, answered.
This model is single-phase: 10,000 VA output at 43.5 A, MPPT 125–500 V and 3–7 batteries for 15.36–35.84 kWh. The three-phase 10kT outputs 10,000 W at 15.9 A with MPPT 180–850 V and 4–8 batteries for 20.48–30.72 kWh. Choose by your site's grid connection.
PV input is capped at 13,000 W through an MPPT voltage range of 125–500 V. Size the string so open-circuit voltage stays inside that window and total input stays at or below 13,000 W.
20 ms for this model. That is the datasheet value for the single-phase high-power family, versus 10 ms (UPS/VDE) on the 3/4/5 kW entry series. Confirm the exact figure against the spec sheet before quoting a UPS application.
