GTB600 600 W Grid-Tie Microinverter.

A two-panel unit with two MC4 pairs for two 300 W modules, 600 W AC output on a 120 V or 230 V grid, 95% peak efficiency and WiFi cloud monitoring.

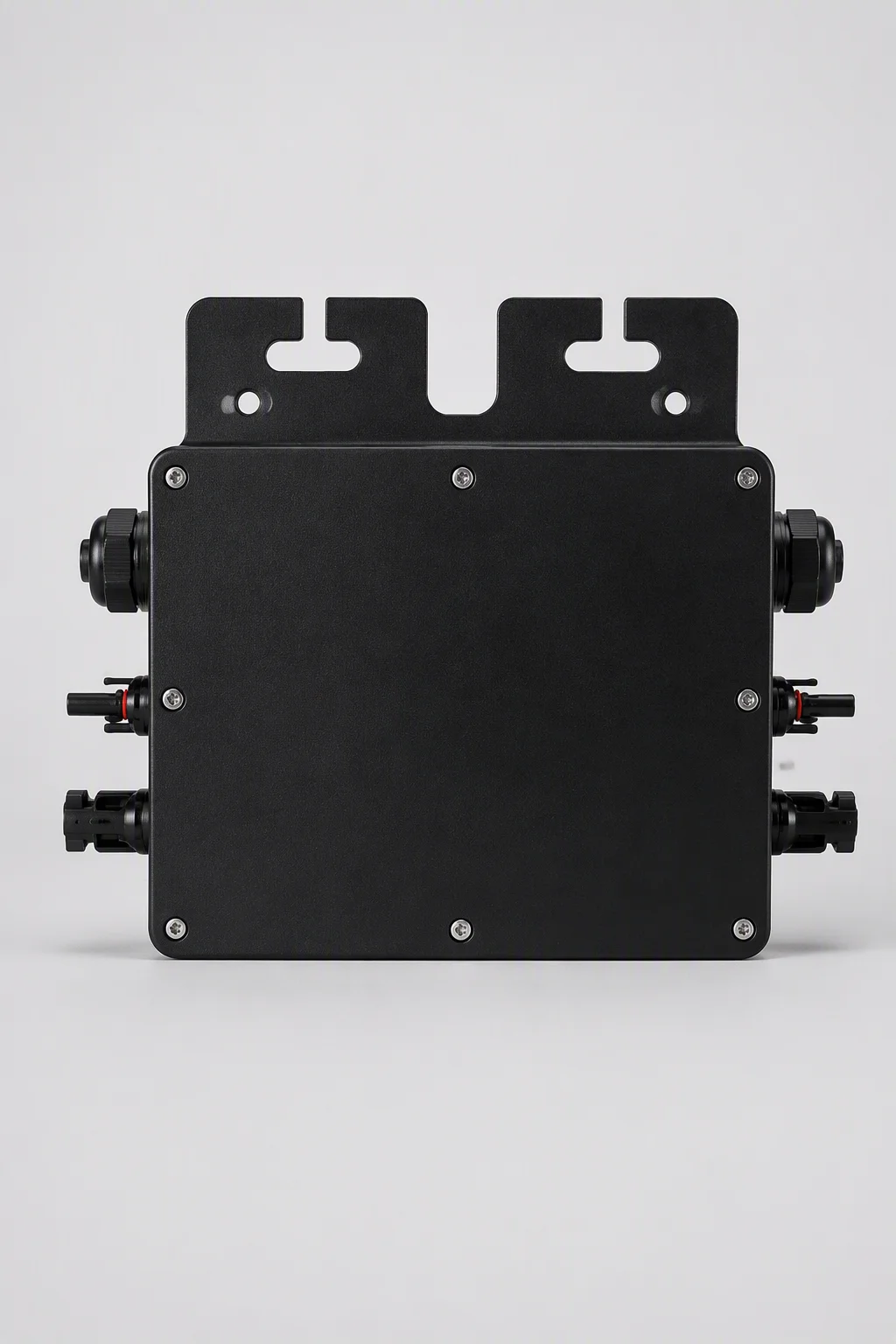

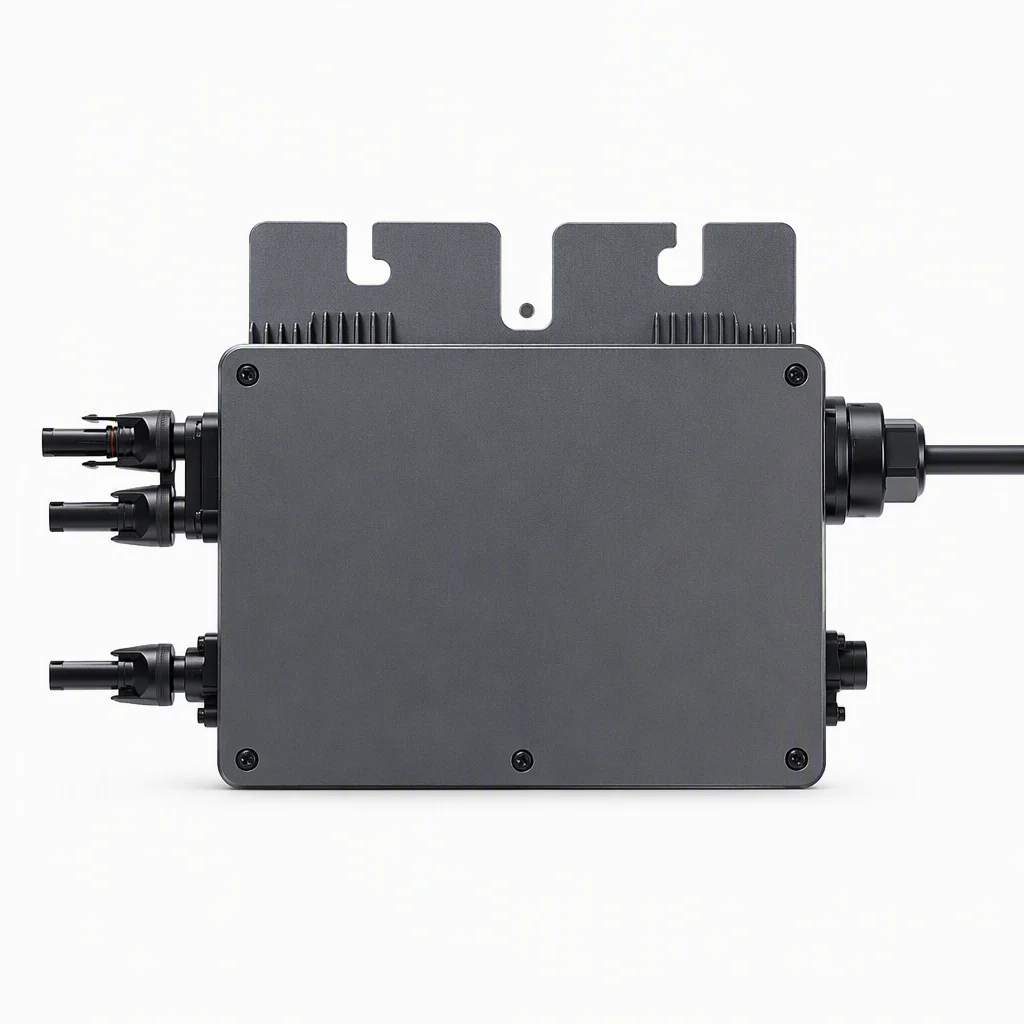

GTB 600W grid-tie microinverter product view with MC4 connectors
GTB600 · 600 W

Two panels, one inverter.

The GTB600 serves two 300 W modules through independent MC4 pairs, with a 12 A×2 maximum input current. At 210×195×35 mm and 2.45 kg, it is the slimmest unit in the series.

  • 2 MC4 pairs · 12 A×2 maximum input current
  • 95% peak efficiency · 99.5% MPPT efficiency
  • <1 W night consumption
  • IP65 · natural convection, no fans
Rated power600 W
MC42 sets
Panels2 × 300 W
Weight2.45 kg
Dimensions210×195×35 mm
Per branch (230 V)8 units (wiring guide)
Full Datasheet

Every figure from the user manual.

Transcribed from the GTB600 user manual, parameter page. The manual lists 10 units per 230 V branch in the table but 8 in the wiring guide — we quote the conservative 8. Warranty term is not stated, so we do not quote one.

Number of Input MC4 Connector2 sets
MPPT Voltage Range22V–48V
Operation Voltage Range20V–50V
Maximum Input Voltage52V
Startup Voltage22V
Maximum Input Power600W
Maximum Input Current12A×2
Panel configuration2×300W (max DC input 600W)
Single-Phase Grid Type120V & 230V
Rated Output Power600W
Maximum Output Power600W
Nominal Output Current@120VAC: 5A / @230VAC: 2.6A
Nominal Output Voltage120VAC / 230VAC
Default Output Voltage Range@120VAC: 80V–160V / @230VAC: 180V–270V
Nominal Output Frequency50Hz / 60Hz
Default Output Frequency Range@50Hz: 48Hz–51Hz / @60Hz: 58Hz–61Hz
Power Factor>0.99
Total Harmonic Distortion<5%
Maximum Units per Branch@120VAC: 5 / @230VAC: 10 (table) · 8 per wiring guide (230 V)
Peak Efficiency95%
Nominal MPPT Efficiency99.5%
Night Power Consumption<1W
Operating Ambient Temperature-40 ℃ ~ +65 ℃
Storage Temperature-40 ℃ ~ +85 ℃
Dimensions (W×H×D)210mm × 195mm × 35mm
Weight2.45 kg
Max Current of AC Bus Cable20A
Waterproof GradeIP65
Cooling ModeNatural Convection – No Fans
CommunicationWIFI (cloud monitoring)
Transformer DesignHigh Frequency Transformers, galvanically isolated
Protection FunctionsIsland / Voltage / Frequency / Temperature / Current
Design ComplianceEN IEC61000-3-2:2019+A1:2021 · EN 61000-3-3 · EN IEC55014-2:2021
CertificationsCE · ISO9001 · ISO14001 · LVD · RoHS · IEC
Wiring

PV array to hybrid inverter.

System wiring diagram showing PV array, PV switch, hybrid inverter and grid connection
System wiring — PV array, switch, hybrid inverter
Installation Notes

Three rules before you mount.

01

Check panel voltage

Keep each panel's Voc at or below 52 V and total input at or below 600 W — the unit's maximum input voltage and power.

02

Mount out of direct weather

The housing is IP65, but the manual directs installers to avoid direct sunlight and rain and never cover the unit.

03

Seal unused ports

Close any unused connectors, and only qualified personnel may open the cover for service.

Buyer Questions

GTB600, answered.

Two 300 W panels per unit, one on each MC4 pair. Keep each panel's open-circuit voltage at or below 52 V and total input at or below 600 W.

We quote 8 units per branch on a 230 V grid — the conservative value from the wiring guide. The datasheet table lists 10, and the manual is internally inconsistent, so confirm the final count with your sales engineer. On 120 V, the table lists 5.

Grid-tie only. The unit produces when 20–50 V DC and AC grid are both present; with PV alone the status light is red and the unit does not operate. Monitoring is via the Smart Life app over WiFi.
